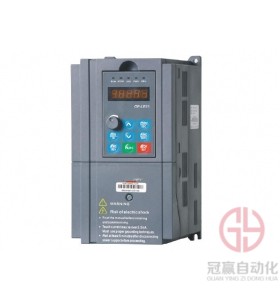

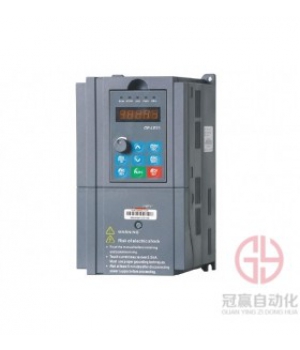

（图为BD330系列高性能矢量变频器）
BD330系列是在DZB300的基础上开发的新一代高性能矢量变频器，，性能优越，，功效富厚，，结构越发合理，，散热性能优越，，设置无邪雅观大方，，能知足客户差别的需求。。。富凌变频器|BD330系列高性能矢量变频器
l AC380V系列额定参数：
| 变频器型号 | 额定功率（kW） | 额定输入电流（A） | 额定输出电流（A） | 适配电机（kW） |
| 输入3PH 380V±15% 47Hz~63Hz |
| BD330-0R7G/1R5P-4 | 0.75/1.5 | 3.4/5.0 | 2.5/3.7 | 0.75/1.5 |
| BD330-1R5G/2R2P-4 | 1.5/2.2 | 5.0/5.8 | 3.7/5.0 | 1.5/2.2 |
| BD330-2R2G/3R7P-4 | 2.2/3.7 | 5.8/10.5 | 5.0/8.5 | 2.2/3.7 |
| BD330-3R7G/5R5P-4 | 3.7/5.5 | 10.5/14.6 | 8.5//13 | 3.7/5.5 |
| BD330-5R5G/7R5P-4 | 5.5/7.5 | 14.6/20.5 | 13.0/18 | 5.5/7.5 |
| BD330-7R5G/011P-4 | 7.5/11 | 20.5/26 | 18.0/24 | 7.5/11 |
| BD330-011G/015P-4 | 11.0/15 | 26.0/35 | 24.0/30 | 11.0/15.0 |
| BD330-015G/018P-4 | 15.0/18.5 | 35.0/38.5 | 30.0/39 | 15.0/18.5 |
| BD330-018G/022P-4 | 18.5/22 | 38.5/46.5 | 39.0/46 | 18.5/22 |
| BD330-022G/030P-4 | 22.0/30 | 46.5/62 | 46.0/58 | 22.0/30.0 |
| BD330-030G/037P-4 | 30.0/37.0 | 62.0/76 | 58.0/75 | 30.0/37 |
| BD330-037G/045P-4 | 37.0/45.0 | 76.0/92 | 75.0/90 | 37.0/45 |
| BD330-045G/055P-4 | 45.0/55.0 | 92.0/113 | 90.0/110 | 45.0/55 |
| BD330-055G/075P-4 | 55.0/75.0 | 113.0/157 | 110.0/150 | 55.0/75 |
| BD330-075G/093P-4 | 75.0/93.0 | 157.0/180 | 150.0/170 | 75.0/93 |
| BD330-093G/110P-4 | 93.0/110 | 180.0/214 | 170.0/210 | 93.0/110 |
| BD330-110G/132P-4 | 110.0/132 | 214.0/256 | 210.0/250 | 110.0/132 |
| BD330-132G/160P-4 | 132.0/160 | 256.0/307 | 250.0/300 | 132.0/160 |
| BD330-160G/200P-4 | 160.0/200 | 307.0/385 | 300.0/380 | 160.0/200 |
| BD330-200G/220P-4 | 200.0/220 | 385.0/430 | 380.0/430 | 200.0/220 |
| BD330-220G/250P-4 | 220.0/250 | 430.0/468 | 430.0/470 | 220.0/250 |
| BD330-250G/280P-4 | 250.0/280 | 468.0/525 | 470.0/520 | 250.0/280 |
| BD330-280G/315P-4 | 280.0/315 | 525.0/590 | 520.0/620 | 280.0/315 |
| BD330-315G/400P-4 | 315.0/400 | 590.0/785 | 620.0/754 | 315.0/400 |
| BD330-400G/500P-4 | 400.0/500 | 785.0/965 | 754.0/930 | 400.0/500 |
| BD330-500G/630P-4 | 500.0/630 | 965.0/1210 | 930.0/1180 | 500.0/630 |
| BD330-630G/710P-4 | 630.0/710 | 1210.0/1465 | 1180.0/1430 | 630.0/710 |
